Traditional protected lithium-ion batteries typically add a protection circuit at the negative terminal, connected via a nickel strip. In contrast, the Weltool UB14-18 adopts a built-in protection circuit at the positive terminal, integrated with the battery through steel shell riveting. This design effectively prevents short circuits caused by impacts or wear, without increasing the battery diameter.
The Type-C USB charging port is located on the positive protection circuit. It supports direct charging via a 5V adapter and can also be connected to a power bank.
An LED charging indicator shows the charging status:
Red: Charging
Blue: Fully charged

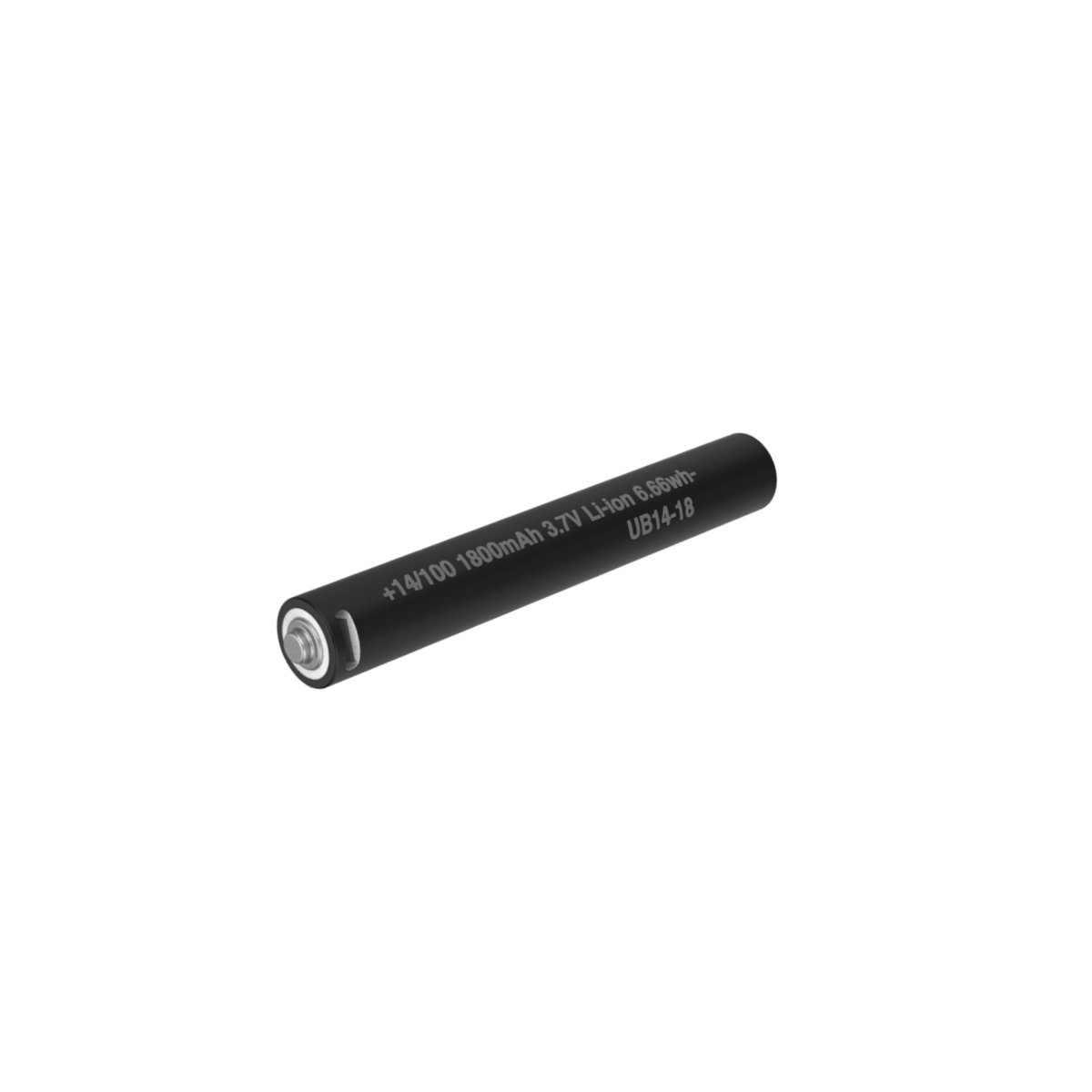

Model: UB14-18
Nominal Capacity: 1800mAh
Rated Capacity: 1800mAh
Cell Internal Resistance: ≤80mΩ
Voltage: 3.7V
Continuous Discharge Current: 3.6A (10–40°C)
Charging Current: 1.0A (via Type-C USB)
Overcharge Cut-off Voltage: 4.25±0.05V
Over-discharge Cut-off Voltage: 2.75±0.1V
Cycle Life: After 300 cycles, ≥70% capacity remains
Charging Temperature: 10–45°C
Discharging Temperature: -20–55°C
Storage Temperature: -20–40°C
Dimensions: 14.3±0.2 mm (diameter), 100±0.5 mm (length)
Weight: 40±0.5g
