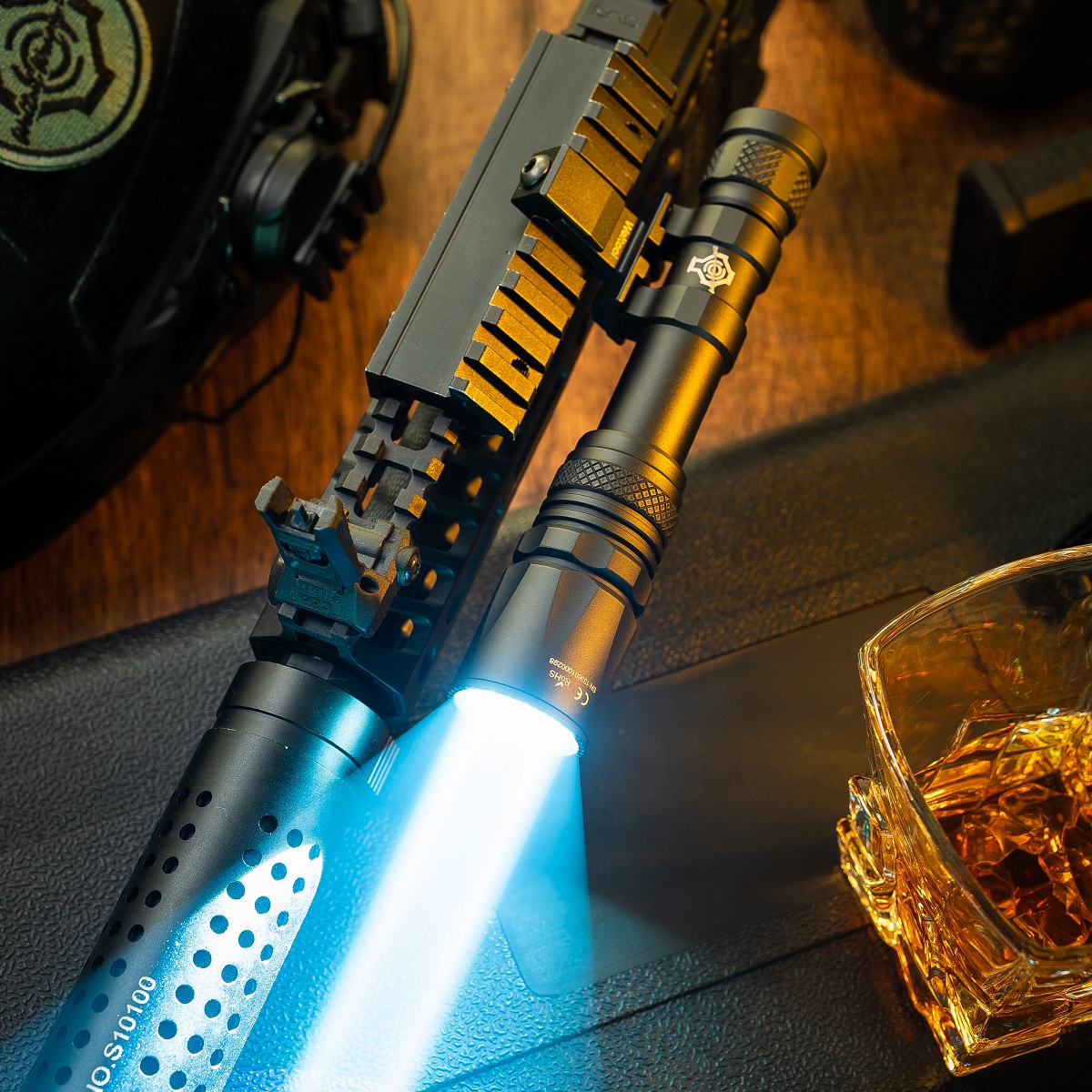

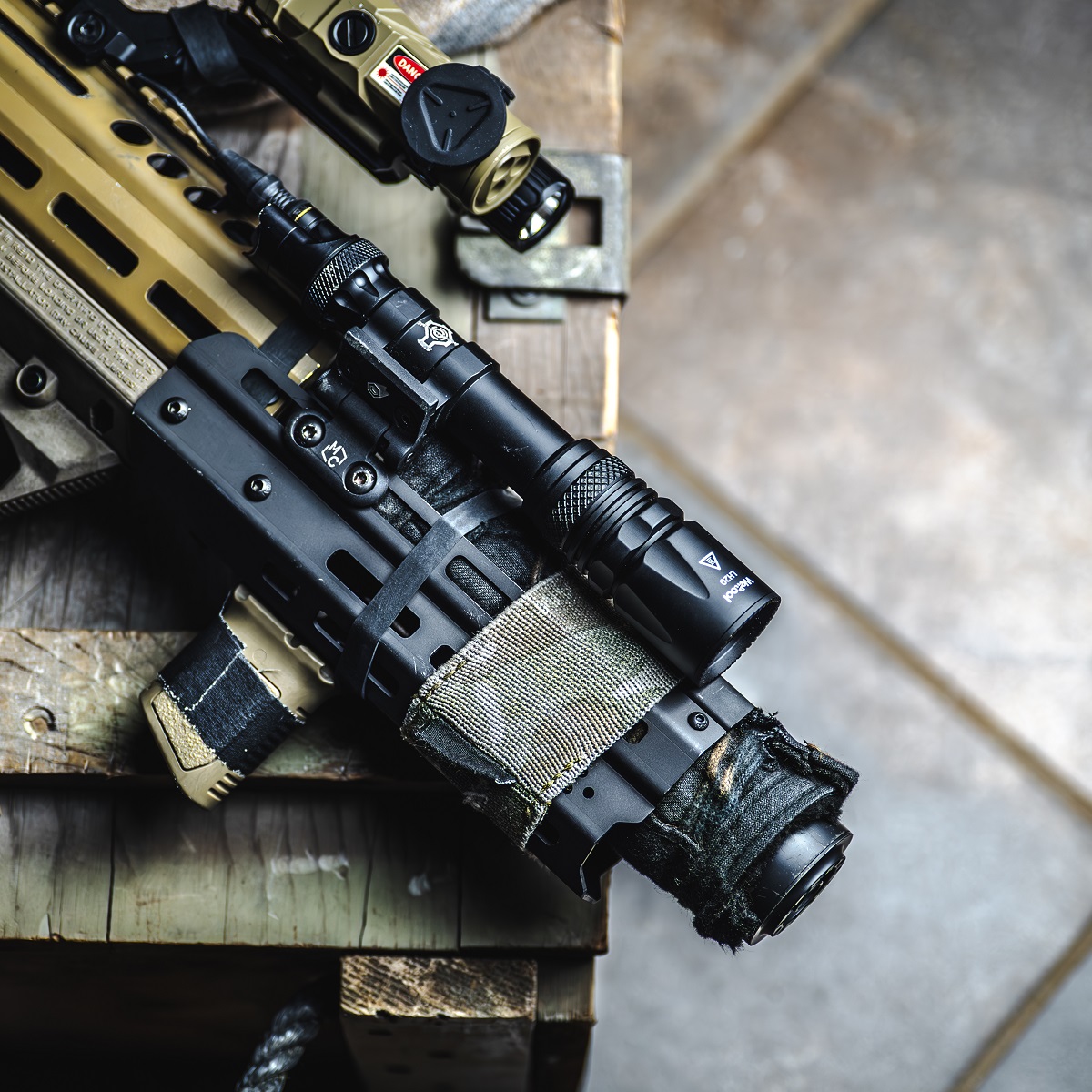

W65S is a long-range LEP weapon light with spill, full size (18650).  364,500 candela, 1,207 meter throw, 700 lumens. Uses a custom LEP light source and aluminum reflector, optimizing the traditional LEP narrow beam to a beam with a spill, the low lux spill is better for dark adaptation retention and situational awareness, while retaining the high candela. This light source complies with IEC 62471 Exempt and IEC 60825 Class 1.The light head has been fully potted and is equipped with a tail switch capable of full-power output.

Performance and parameters:

CNC machined aluminum alloy, hard anodized surface

Aluminum reflector, coated tempered glass lens

Customized white LEP light source, color temperature 6000-6500K

Light Output：700 lumens

Beam Intensity：364,500 candela

Beam Distance：1,207meters

Runtime：             1 h 40 min

（Tested outdoors in a ventilated environment using Weltool 3000mAh 18650 Li-Ion battey）

With battery over-discharge protection, battery reverse connection protection, low voltage reminder function

Light head is potted

No flicker and noise

Battery type: 1 high-drain 18650  lithium-ion battery

IP67, can be used in heavy rain

Passed 1 meter height drop test

Each light has an independent serial number

Weight (without battery): 140±1g

Dimensions (±0.5mm): (head diameter) 32.5mm, (body width) 29mm, ( length) 167mm

Included: Weltool high-drain 18650  lithium-ion battery, O-ring

Operating Instructions:

1.Install the battery correctly. If the light does not function properly, check whether the battery is inserted in reverse.

2.After installing the battery, lightly press the tail switch for momentary activation; release to turn it off.

3.Fully press the switch until a “click” is heard to activate constant-on mode. Press again until it clicks to turn it off.

4.When the battery voltage drops, the light will flash as a warning. Please recharge the battery promptly.

5.When the battery is fully depleted, the weapon light will automatically shut off.

Notice:

• Do not disassemble any components by yourself, as this will void the warranty and may damage the product.

• It is normal for this weapon light to generate heat during use. However, prolonged operation will accelerate power consumption and heat accumulation. This light has a built-in thermal protection function that automatically reduces output after 2 minutes of continuous use.

• After long-term use, the O-ring may age. Please replace it in time to maintain the waterproof performance.

• Applying too much thread lubricant may cause the light to malfunction.

• Lithium-ion batteries will self-discharge. If not used for an extended period, please remove the battery and recharge it at least once every two months.

• Do not shine the light directly into eyes or onto skin to avoid potential eye injury or skin burns. Keep away from children.
