Weltool INR series lithium-ion batteries use original cells without additional protection circuits. When in use, please ensure the battery is not over-discharged or overcharged.

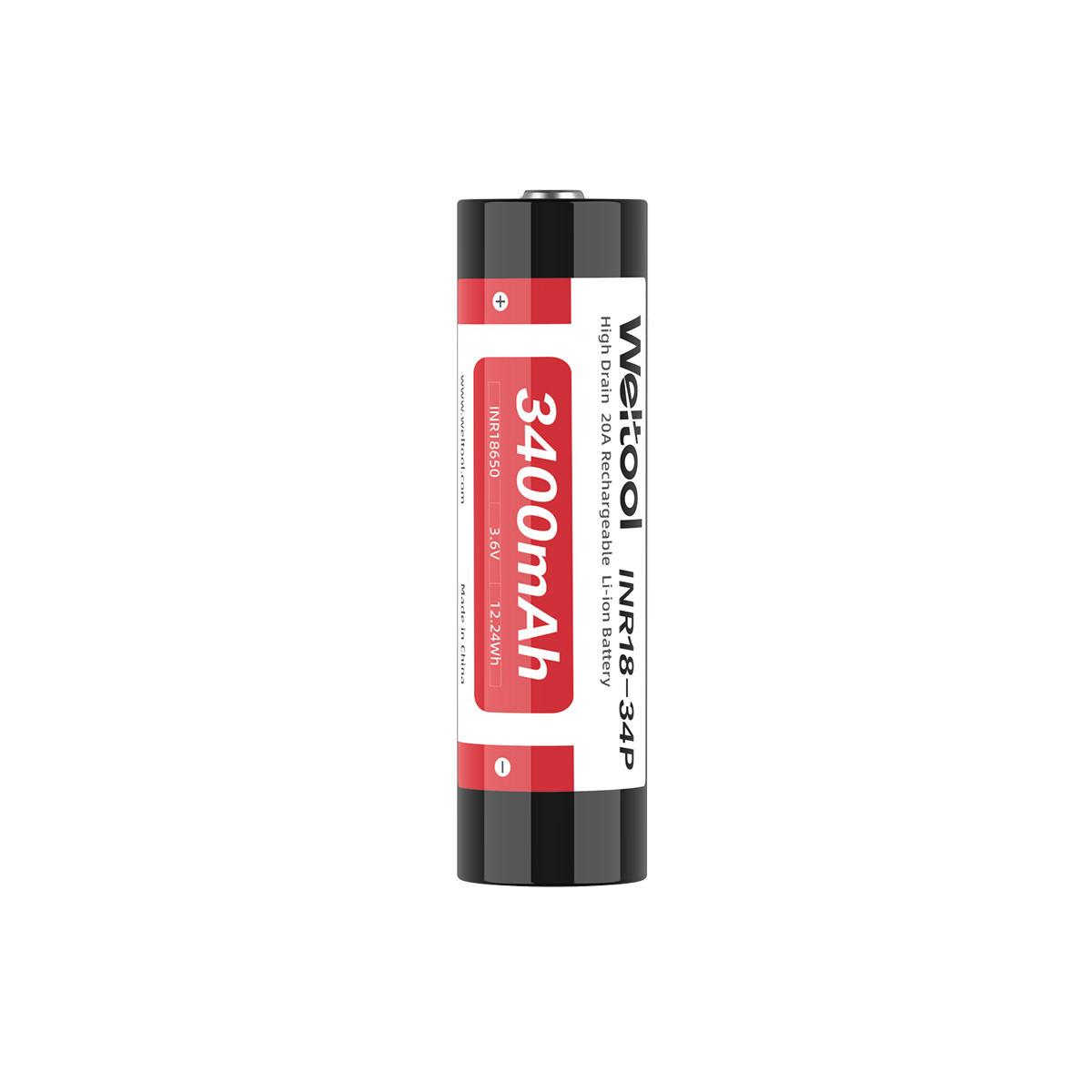

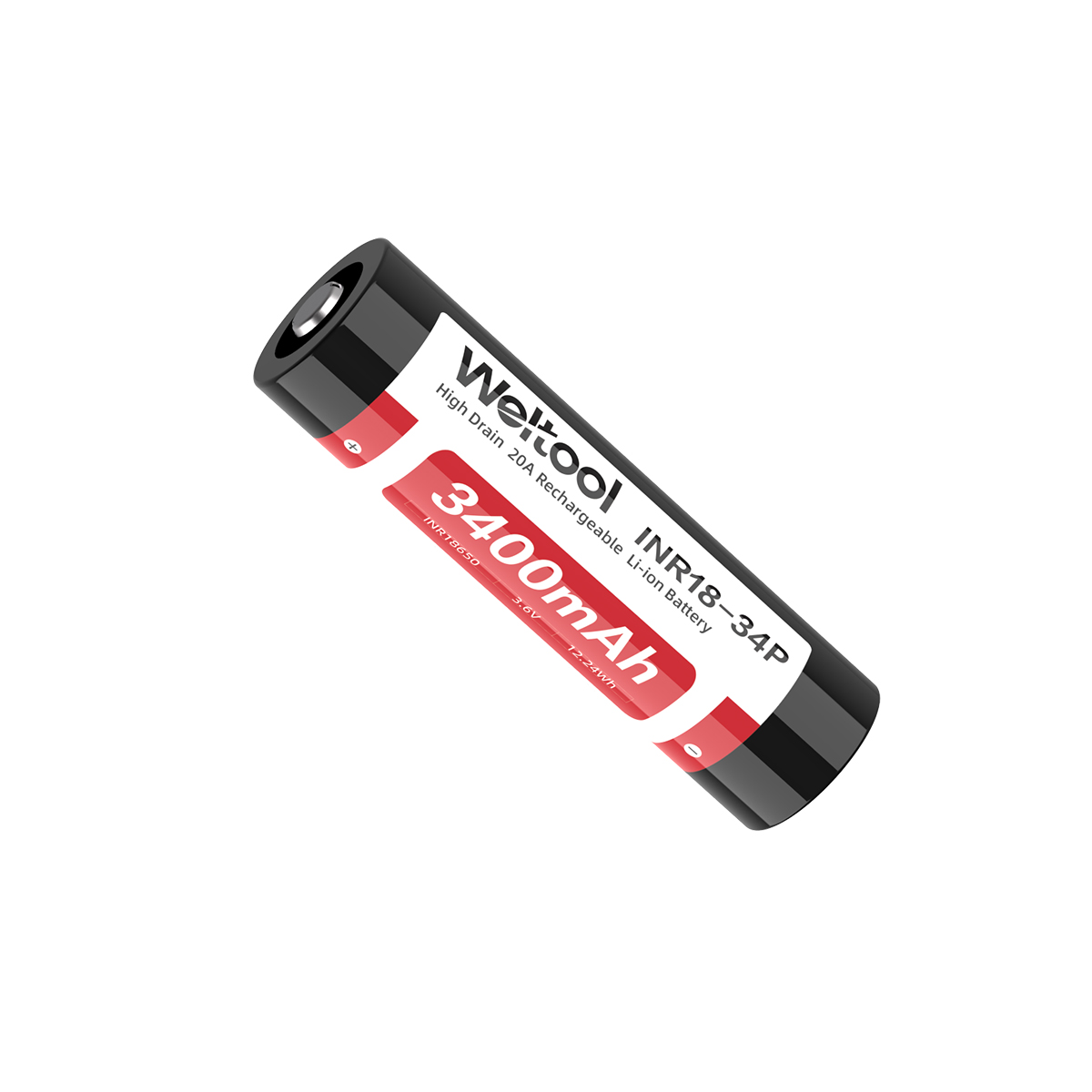

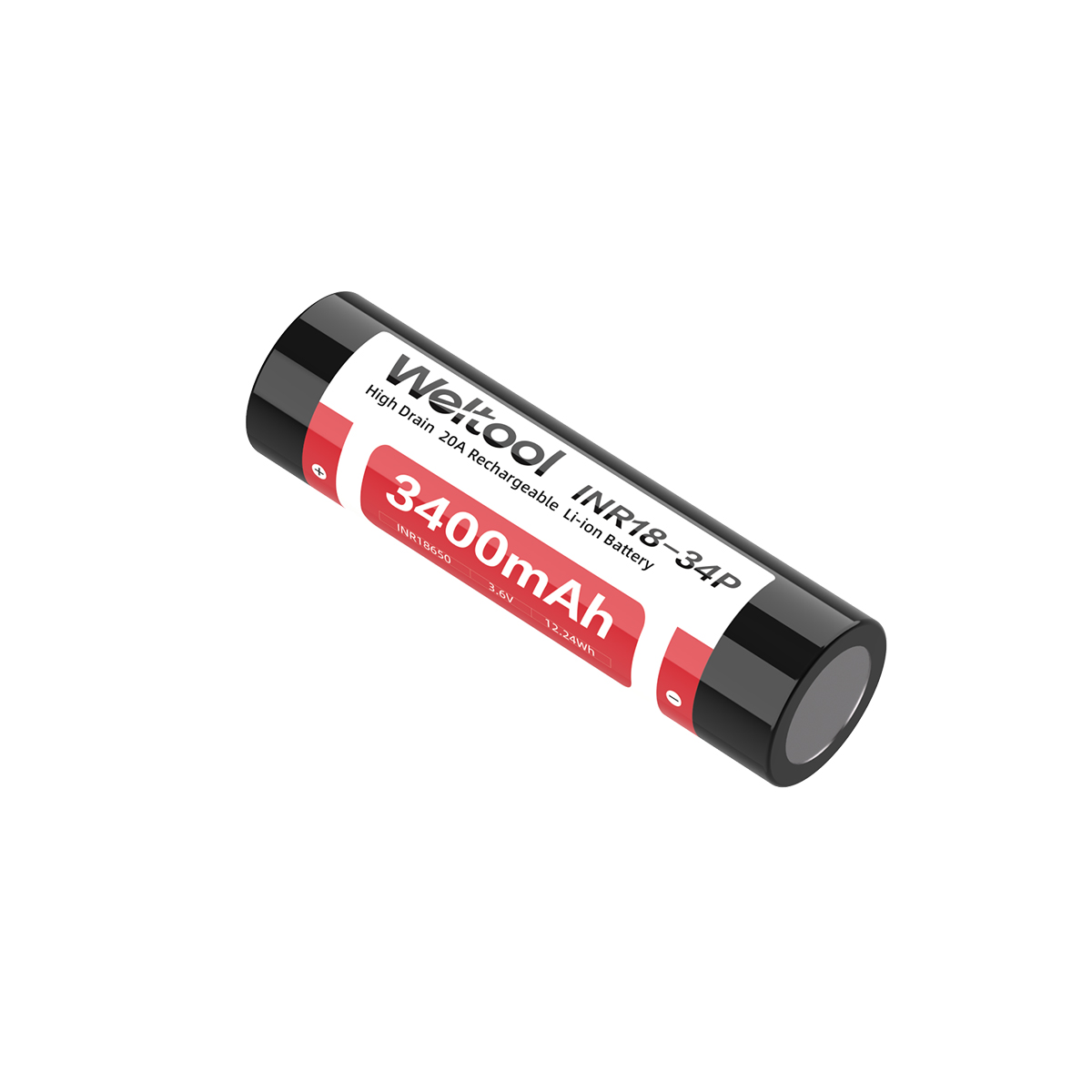

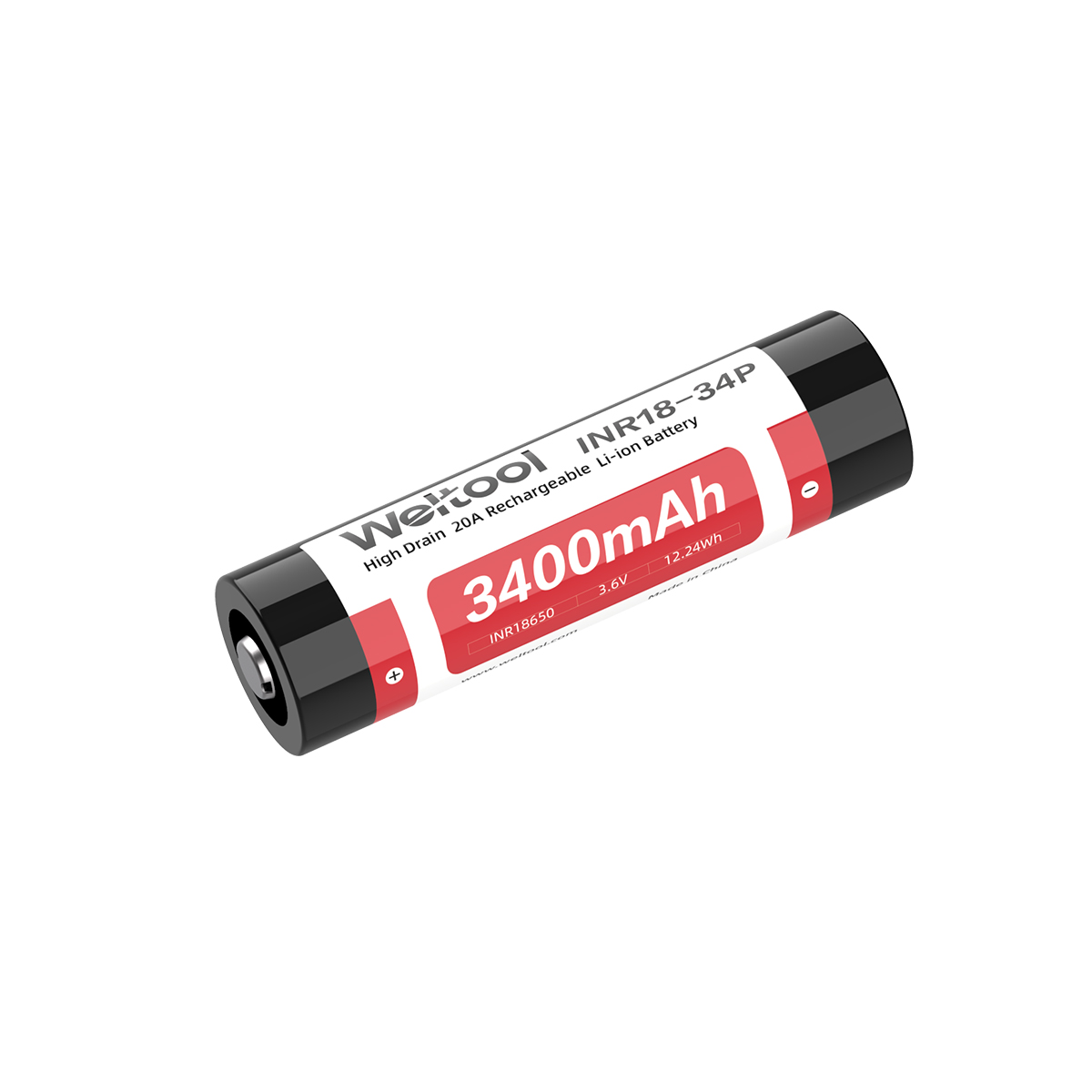

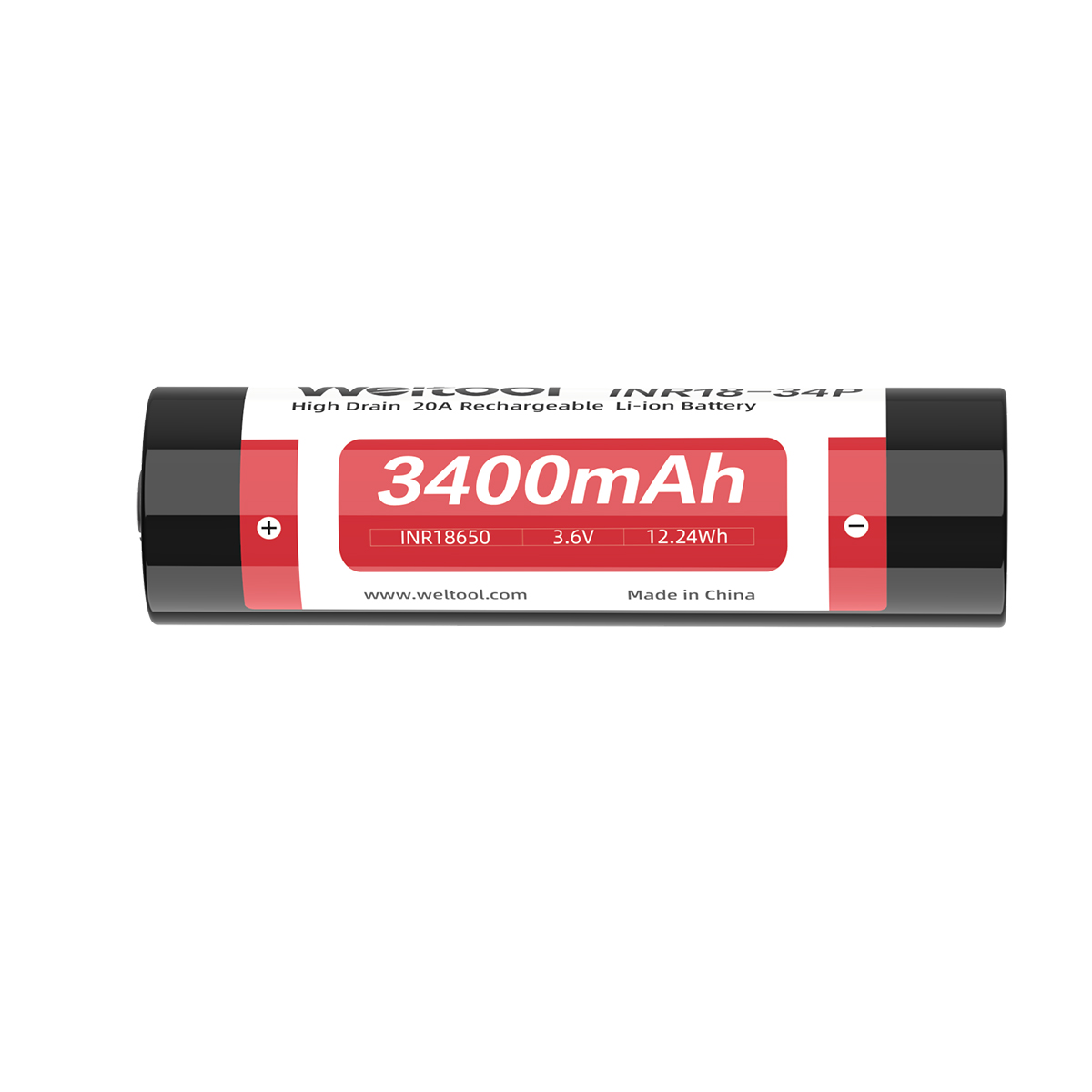

The INR18-34P is a high-drain cell with a peak discharge current of 20A and a button top design.
Specifications:
Model: INR18-34P
Capacity: 3500mAh (0.1C discharge), 3400mAh (0.2C discharge)
Internal Resistance: ≤19mΩ
Nominal Voltage: 3.6V
Continuous Discharge Current: 20A (with 75 ℃ thermal cut-off protection)
Standard Charging Current: 1.75A
Max Charging Current: 6A (peak charging current of charger)
Overcharge Cut-off Voltage: 4.2±0.05V
Over-discharge Cut-off Voltage: 2.5±0.1V
Cycle Life: ≥60% capacity remaining after 500 charge/discharge cycles
Charging Temperature Range: +0~+45 ℃
Discharging Temperature Range: -20~+60 ℃
Storage Temperature Range:-20~+45 ℃ (within 3 months)
Dimensions: 18.5±0.2 mm (diameter), 67.5±0.5 mm (length)
Weight: 49±0.5g
