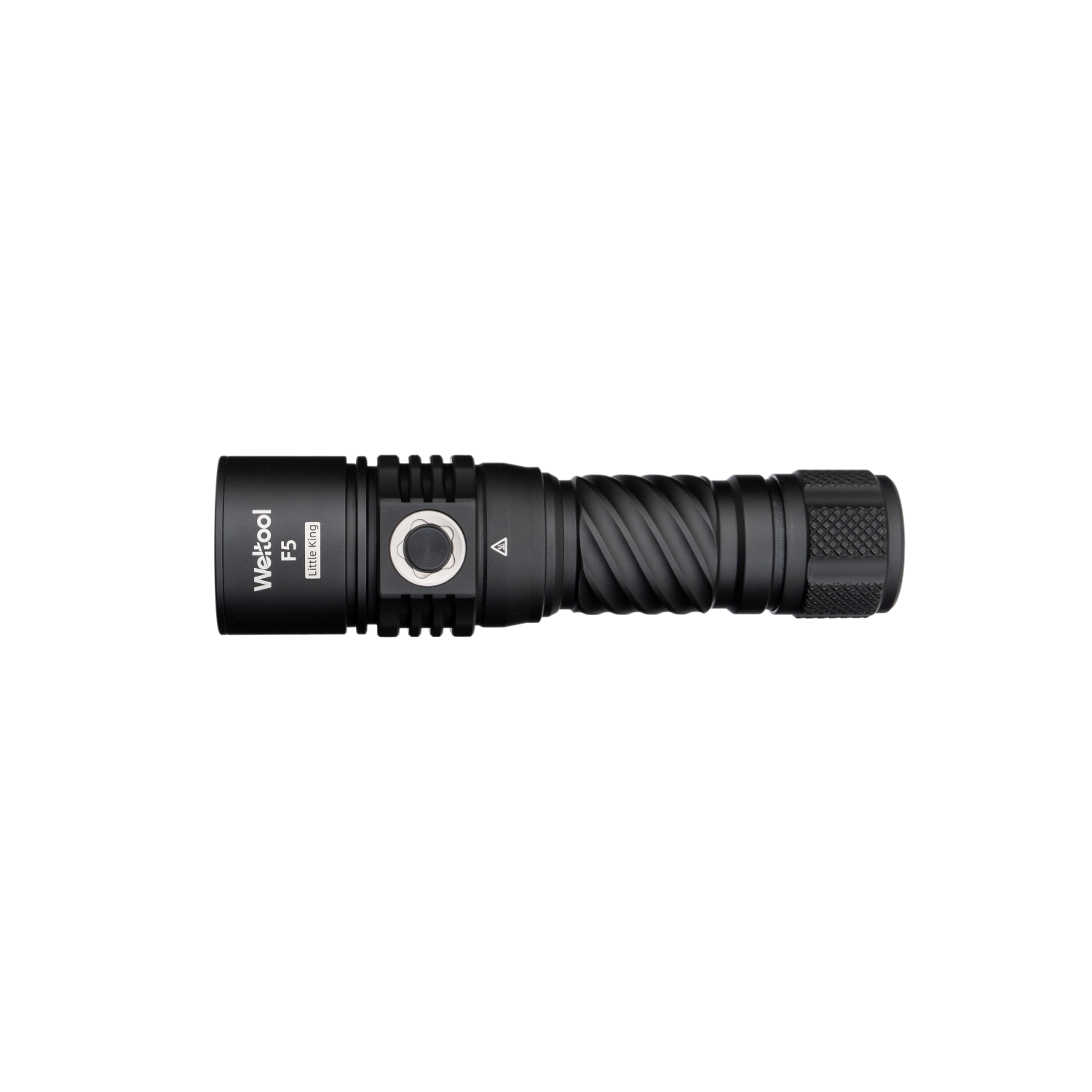

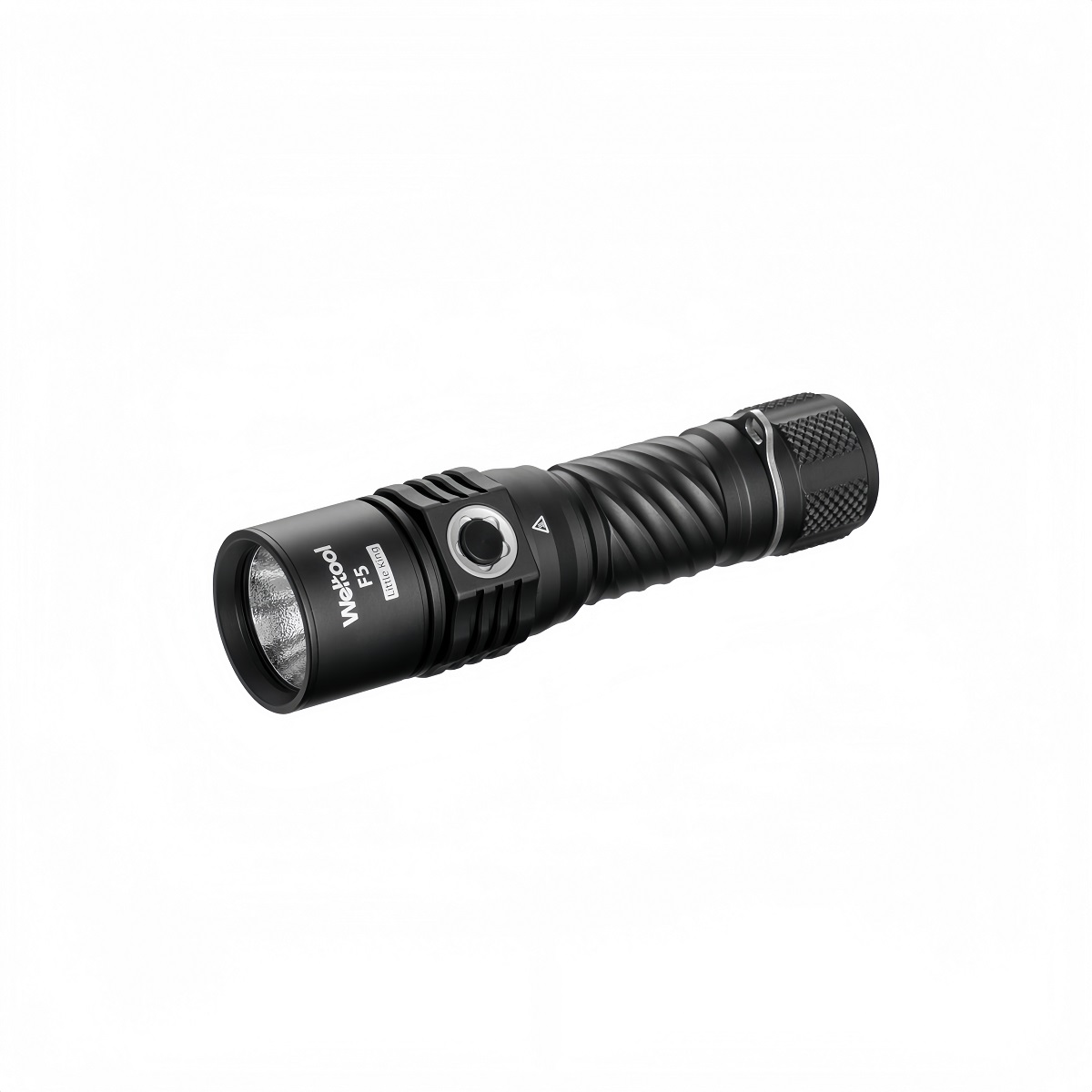

The F5 is a high-lumen outdoor LED flashlight powered by a single 7,000mAh 26650 lithium-ion battery with USB charging capability. In turbo mode, it delivers up to 4,600 lumens and 29,250 candela, with a maximum beam distance of 342 meters, and features a strobe mode.

The side switch is equipped with a battery level indicator and a switch lockout function to prevent accidental activation. The F5 offers a natural beam color, providing an excellent balance of throw and flood illumination. It also comes with a stainless steel lanyard ring, allowing a wrist lanyard to be attached for secure carrying.The F5 is especially suitable for outdoor hiking, maintenance work, and general outdoor applications.

Performance & Specifications:

• Precision CNC-machined from T6 series aluminum alloy with a hard-anodized surface finish for enhanced durability and wear resistance

• Aluminum alloy reflector with an AR-coated tempered glass lens

• Equipped with a single high-power natural white X-LED emitter, featuring a 5000K color temperature

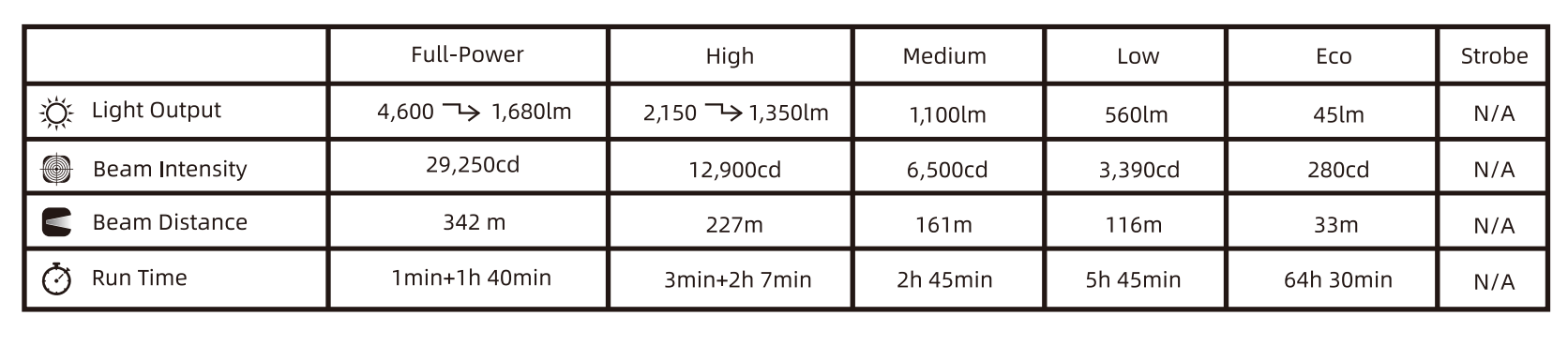

• Output:

The above performance data was tested using the Weltool UB26-70 lithium-ion battery under normal ambient temperature conditions. Test results may vary depending on environmental conditions and testing methods and are provided for reference only.

• The flashlight features battery over-discharge protection, reverse polarity protection, low-voltage warning, and low-voltage cutoff protection.

• Both Turbo and High mode are equipped with overheat protection. The flashlight is flicker-free, noise-free, and features low standby current consumption.

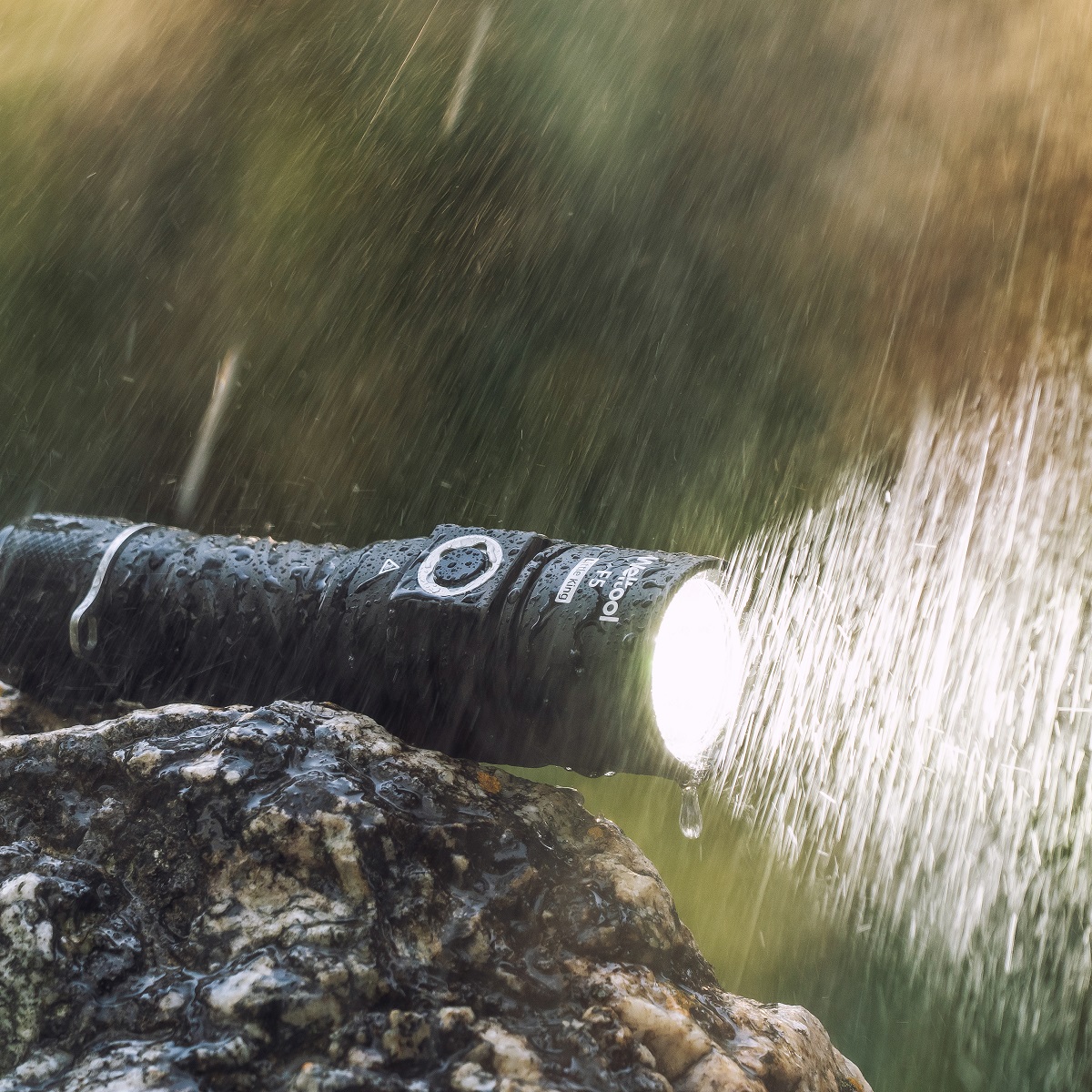

• Rated IP67 waterproof, the flashlight can be used in heavy rain.

• This flashlight has passed a 1-meter drop resistance test.

• Each flashlight is marked with a unique serial number.

• Weight: 336 ± 1 g(including battery)

• Dimensions (±0.5 mm): (Head diameter)41.5 mm,(Body diameter) 33 mm, (Length)158 mm

• Included Accessories:

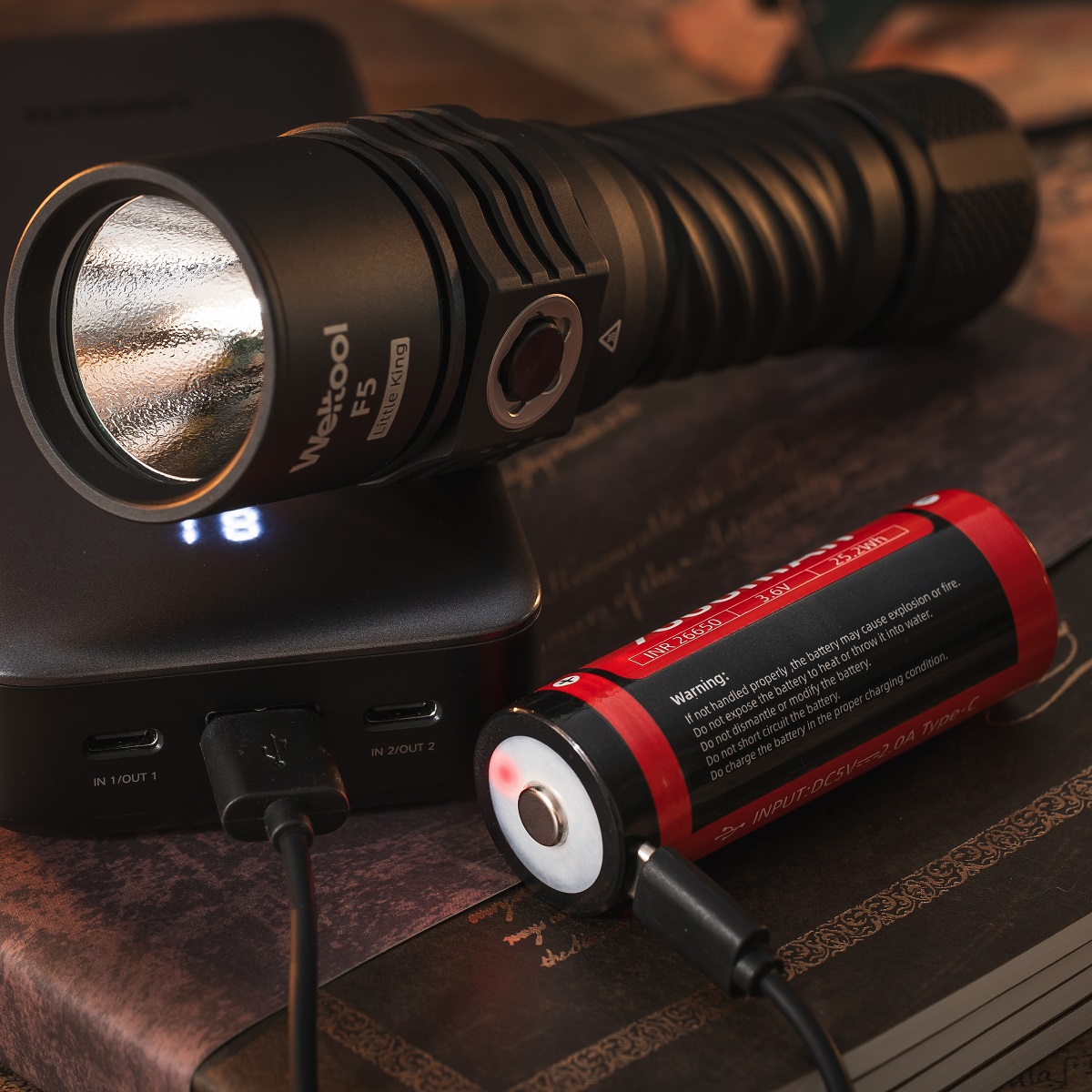

1 × UB26-70 lithium-ion battery

1 × Type-C charging cable

1 × O-ring

1 × Stainless steel lanyard ring

Operating Instructions:

1. Install the battery correctly. This product only supports one Weltool INR26-110 lithium-ion battery.

2. The flashlight has reverse polarity protection. If the flashlight does not work, please check the battery.

3. Single-click the switch to turn the flashlight on or off. The switch button includes a battery level indicator.

4. After turning on the flashlight, press and hold the switch to cycle through mode,release to select and lock the current mode.Double-click(from off or any mode) to enter full-power mode,Triple-click to activate strobe mode.The flashlight remembers the last used mode (except full-power and strobe).

5. When turning on or during use, the battery indicator will light up,Green light:sufficient power,Red light: low power,The indicator automatically turns off after 5 seconds. When the battery is critically low, the red indicator flashes continuously and the main LED also flashes before shutting down.

6. When the flashlight is locked, you can still check the battery level by pressing the switch once—the indicator light will show the status.

7. The charging port indicator shows the charging status:

Red light: charging,  Green light: fully charged

Switch Lock / Unlock Function:

Lock: When off, press and hold the switch for more than 3 seconds. The switch indicator and main LED will flash three times to confirm lock. The flashlight will remember the locked state and mode. When the battery is replaced, you must unlock it again before use.

Unlock: When locked, press and hold the switch for more than 3 seconds to unlock. The flashlight will then turn on in the last memorized mode.

Notes:

1. Do not disassemble the flashlight, as this will void the warranty and may cause damage.

2. Heat generated during operation is normal, as the flashlight effectively dissipates heat.Avoid prolonged use in full-power mode.If the flashlight becomes hot to the touch, switch to a lower mode or turn it off to prevent burns.

3. Keep away from flammable materials when using at high mode. Do not shine directly into eyes or skin.Keep out of reach of children.

4. The O-rings on the tail cap and waterproof cover may age over time. Replace them as needed to maintain waterproof performance.

5. Excessive thread grease may cause poor conductivity. If flickering or lighting issues occur, clean the contact surfaces with an alcohol swab.

6.This flashlight has excellent waterproof performance, but it is not designed for diving use. Do not use it as a diving flashlight, especially when the flashlight is very hot.

7. Do not strike, drop, immerse, disassemble, or short-circuit the lithium-ion battery, as this may cause overheating, fire, or explosion.
